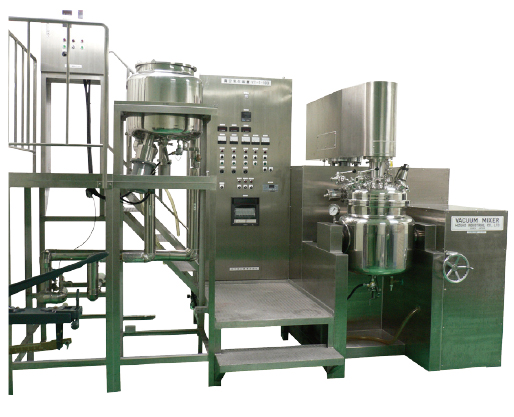

Vacuum Emulsifying Mixer Upper Triple Mixing System (VT Type)
Our emulsifier is a device that operates while maintaining the optimum conditions (vacuum, heating, cooling, etc.) inside the container for stirring and emulsifying products.
The VT and FVT types (without rollover function) have a coaxial triple shaft structure that manufactures emulsified matter with scraping on the outside (Anchor Stirring), Paddle Mixer in the middle, and high-shear mixing (Homo-Mixer, Ultra Mixer, Disper Mixer) in the interior.
- #Emulsion
- #Automated Operation
- #High Viscosity
Features
- Achieves uniform atomization, vertical convection, and mixing of sufficient emulsified matter through triaxial mixing.
- The structure has an axis seal structure that enables mixing in a vacuum.

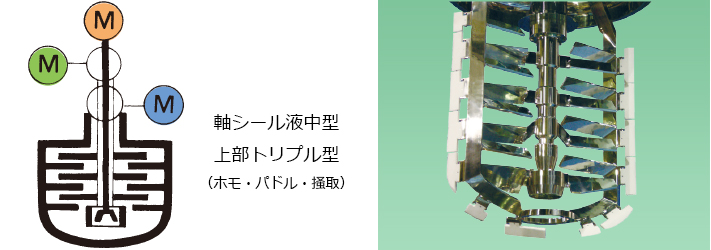

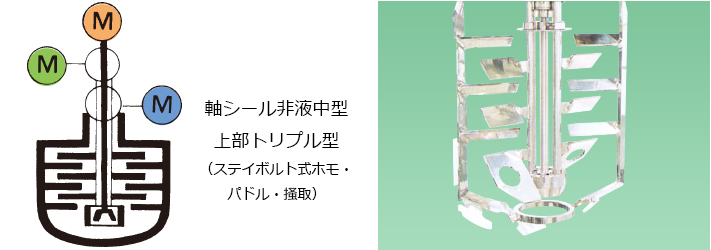

- Depending on the position of the axis seal for high-shear mixing, it distinguishes between the stay bolt type (non-wetted seal structure) and pipe type (wetted seal structure).
- Various devices can be easily attached and detached to improve cleaning performance.
- Highly reliable scale-up is possible based on our demo machine.
- Automatic operation and remote control are also possible (option).
Varieties of Mixing Blades
Use
-
Cosmetics
Makeup cream, Toner, Lotion, Shampoo/Conditioner, Gel products, Toothpaste, Bar soap, Hair color
-
Pharmacenticals
Ointment
-
Foods
Mayonnaise, Salad dressing
-
Chemicals
Silicon oil, Wax
Specification example
■VT (FVT)-1-25 to VT (FVT)-2-8000
・Internal Capacity (L): 25L to 8,000L (selectable range)
・Working Capacity (L): 15L to 6,000L (selectable range)
・Wetted part materials are SUS304, SUS316, and SUS316L. Other special materials are available.
・Mixing Blade: Homo-Mixer (low viscosity/high viscosity), Ultra Mixer, Scraping Mixer
