Vacuum Emulsifying Mixer Triple Mixing System (VTU Type)

Our emulsifier is a device that operates while maintaining the optimum conditions (vacuum, heating, cooling, etc.) inside the container for stirring and emulsifying products.

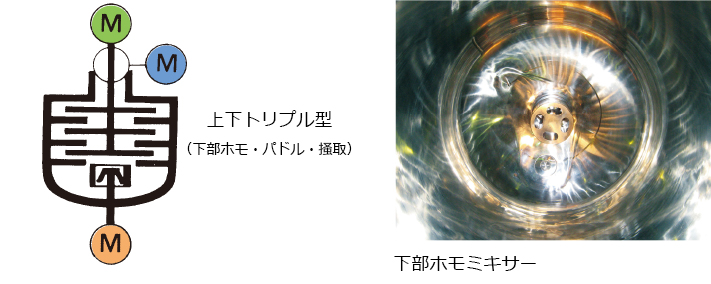

The VTU type manufactures emulsified matter by adopting a vertical triple mixing structure.
- Upper part: Scraping Mixer (Anchor Stirring) for exterior, Paddle Mixer for interior
- Lower part: High-shear mixer (Homo-Mixer, Ultra Mixer, Disper Mixer) at bottom of tank

#Emulsion
#Scale Up Test
#Automated Operation
#High Viscosity

Features

Achieves uniform atomization, vertical convection, and mixing of sufficient emulsified matter through triaxial mixing.
By installing a high-shear stirring mixer at the bottom of the tank, it is possible to mix from a small amount compared to the VQ and VT types.
The structure has an axis seal structure that enables mixing in a vacuum.
Various devices can be easily attached and detached to improve cleaning performance.
Highly reliable scale-up is possible based on our demo machine.
Automatic operation and remote control are also possible (option).

Varieties of Mixing Blades

Use

Cosmetics

Moisturising Cream/Beauty Creams, Skin Toners, Lotions, Shampoos/Rinses, Gels, Tooth Pastes, Hair Color
Pharmaceuticals

Ointments
Foods

Mayonnaise, Dressings
Chemicals

Silicone Oil, Wax

Specification example

■ VTU-1-25 to VTU-2-5000
Internal Capacity (L): 25L to 5,000L (selectable range)
Working Capacity (L): 15L to 4,000L (selectable range)
Product contact part materials are SUS304, SUS316, and SUS316L. Other special materials are available.
Mixing Blade: Homo-Mixer (low viscosity/high viscosity), Ultra Mixer, Scraping Mixer
