Vacuum Emulsifying Mixer Upper Double Mixing System (VQ Type)
Our emulsifier is a device that operates while maintaining the optimum conditions (vacuum, heating, cooling, etc.) inside the container for stirring and emulsifying products.
The VQ type has a coaxial double stirring structure that scrapes the outside (Anchor Stirring) and mixes the inside at high speed (Homo-Mixer, Ultra Mixer, etc.) to produce emulsions.
- #Emulsion
- #Automated Operation
- #High Viscosity
Features

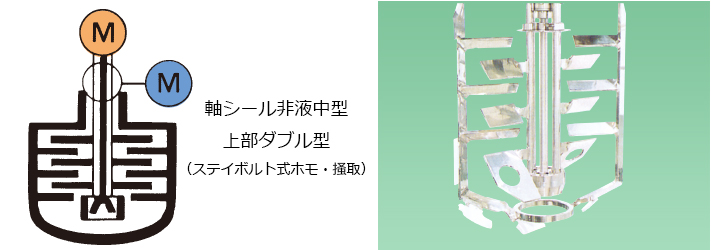

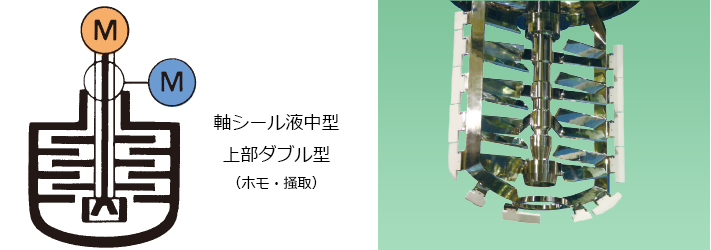

- Depending on the position of the axis seal for high-shear mixing, it distinguishes between the stay bolt type and pipe type.
- Uniform atomization of emulsions is possible.
- The structure has an axis seal structure that enables mixing in a vacuum.
- Various devices can be installed to improve cleaning performance.
- Highly reliable scale-up is possible based on our demo machine.
- Automatic operation is also possible depending on specifications.
Varieties of Mixing Blades
Use
-
Cosmetics
Moisturising Cream/Beauty Creams, Skin Toners, Lotions, Shampoos/Rinses, Gels, Tooth Pastes, Hair Color
-
Pharmaceuticals
Ointments
-
Foods
Mayonnaise, Dressings
-
Chemicals
Silicone Oil, Wax
Specification example
■ VQ-1-25 to VQ-2-8000
Internal Capacity (L): 25L to 8,000L (selectable range)
Working Capacity (L): 15L to 6,000L (selectable range)
Product contact part materials are SUS304, SUS316, and SUS316L. Other special materials are available.
Mixing Blade: Homo-Mixer (low viscosity/high viscosity), Ultra Mixer, Scraping Mixer
